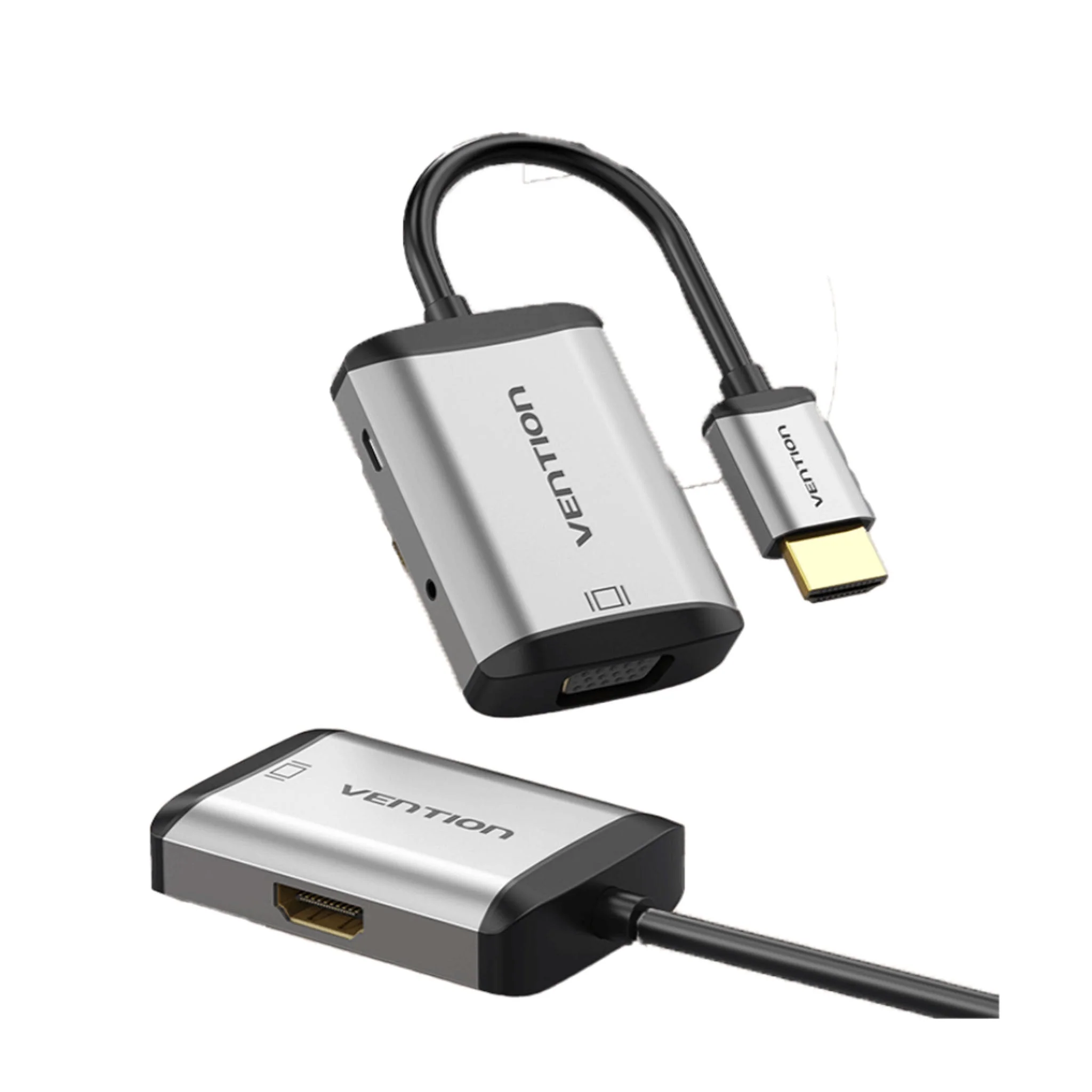

Vention HDMI to HDMI+VGA Converter 0.15M Gray Metal Type

vention HDMI to HDMI+VGA Converter 0.15M Gray Metal Type

Two screens. One HDMI source. No splitter box, no power adapter hunting, no second laptop — just one compact converter that feeds both a modern HDMI display and a legacy VGA screen at the same time. That is the exact problem the Vention AFVHB HDMI dual output converter was built to solve, and it does so in a housing small enough to forget is there.

Splitting One Signal Into Two Displays

Most converters handle one job: connect A to B. The AFVHB does something more useful. It takes a single HDMI input and outputs simultaneously to both an HDMI display and a VGA display, without switching between them. Both screens receive the signal at once.

This matters in hybrid environments where display infrastructure is mixed — a modern HDMI monitor at the desk alongside a legacy VGA projector at the front of the room, for instance. One cable in, two screens on.

4K on HDMI, Full HD on VGA — Simultaneously

The HDMI output delivers up to 4K at 30Hz, preserving the resolution of modern displays without capping them to VGA’s ceiling. The VGA output runs Full HD at 1080p and 60Hz independently. Each port performs at its own maximum, not a shared lowest common denominator.

Independent 3.5mm Audio Output

VGA carries no audio. The AFVHB includes a dedicated 3.5mm audio port so sound is not lost when VGA is in use. Connect external speakers or a headset directly to the converter for synchronized audio without relying on the display’s built-in sound system.

Micro-USB Power Port for Low-Output Devices

Some source devices supply less HDMI bus power than others. The optional Micro-USB input provides supplemental power when needed, ensuring stable dual-output performance regardless of the host device. No external adapter is required for standard HDMI sources.

Verified Specifications

The technical data below confirms the capabilities described above for the Vention AFVHB.

Signal, Resolution, and Connectivity

• Model: AFVHB
• Input: HDMI Male (HDMI 1.4)
• Output 1: HDMI Female — up to 4K (3840 x 2160) at 30Hz
• Output 2: VGA Female — up to 1920 x 1080 at 60Hz
• Output Mode: Simultaneous HDMI + VGA (mirror or extended)
• Audio: Independent 3.5mm audio output port
• Supplemental Power: Micro-USB female port (optional, for low-output HDMI sources)
• Plug-and-Play: No drivers or software required

Build and Compliance

• Cable Length: 0.15M
• Housing: Gray aluminum alloy for heat dissipation and durability
• Connectors: Gold-plated for corrosion resistance and stable signal contact
• Conductors: Tinned copper
• Jacket: PVC
• Certifications: CE, FCC, RoHS
• Compatibility: Windows, macOS, Linux; laptops, desktops, gaming consoles, Blu-ray players, smart boxes, and all HDMI-output devices

Where the Dual Output Makes the Difference

The Presenter Facing a Mixed AV Setup

Conference venues, training halls, and boardrooms often have one screen with HDMI and another running on VGA — a TV and a projector side by side, or a monitor at the presenter position and a projector for the audience. The AFVHB feeds both from one laptop connection, without the presenter switching inputs or carrying two separate adapters. For the full range of display adapters and AV converters at Big Mind Technologies, this model sits at the top of the display-output category.

The Educator Running a Dual-Screen Classroom

A teacher might display lesson content on an HDMI smart board while a VGA projector covers the back of the room for students seated further away. Both outputs mirror the same content. The 3.5mm audio port connects directly to a classroom speaker system so audio accompanies the video without relying on the display’s own speakers.

The AV Technician Setting Up an Event

Events and exhibitions regularly run display walls that mix generations of screens. An AV technician needing to drive one HDMI LED panel and one VGA monitor from the same laptop or media player gets a clean, single-adapter solution. The aluminum alloy housing handles the thermal load of sustained dual-output use and withstands the physical demands of repeated setup and teardown. Full product details are available on the official Vention product page.

The Home User Repurposing an Old Monitor

A second screen adds workspace. An older VGA monitor connected alongside an HDMI primary display via the AFVHB creates a two-screen setup from a single HDMI source. No docking station needed, no additional hardware beyond a VGA cable. Mirror or extend — the display mode switches through standard OS settings.

The Big Mind Technologies Guarantee

Big Mind Technologies supplies genuine, CE, FCC, and RoHS-certified Vention products with full manufacturer warranty coverage. The Vention HDMI to HDMI+VGA Converter 0.15M Gray Metal Type ships ready to use straight out of the box. Contact our team before purchase if you need compatibility confirmed for your specific display setup.
